          Webb's Adder

    Most mechanical calculating instruments are more or less rectangular in shape; a few are circular or cylindrical. But only one design has the shape of a “figure eight” – the Webb Adder. This curiously shaped item in my collection was developed by Charles Henry Webb (1834–1905), an American inventor, poet, and journalist, who was a man of many talents; he applied some of them to inventing innovative adding machines which he sold from the 1860’s to the turn of the century.

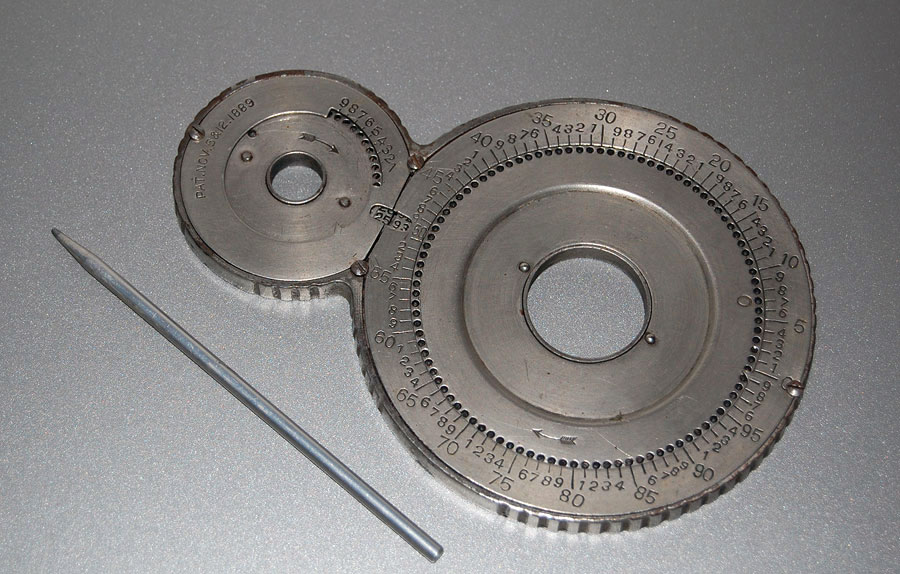

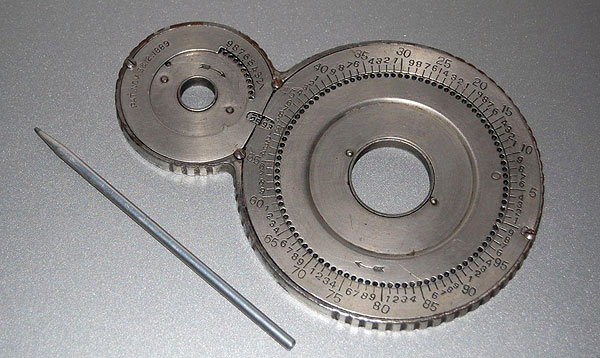

Webb Adder
Click photo to enlarge
    In addition to the famous figure eight device (which had a number of models, the earliest patented in 1868, and a number of knock-offs made by Victor and others), Webb also devised a “Ribbon Adder” in 1886, which failed to achieve commercial success. The version I have here bears the 1889 patents, an improvement over the original model. Its nickel-plated cast iron case shows some rust spots, often seen in these 120-year-old devices; but the mechanism is perfectly good!
    Operation of the Webb adder is simple: you reset the two dials so the readout in the small window where the two wheels join shows 000; then you simply dial in the numbers to add, numbers up to 99 on the large wheel and hundreds on the small one, using a pointed stylus, until you hit the stop (in a manner reminiscent of the telephone dials that soon no one will remember). The sum is seen in the readout window, and can go as high as 4999, the machine’s maximum capacity. When the big wheel reaches 99 and you add another number to it, a carry operation takes place with the small wheel incrementing by 1 (that is, a hundred).

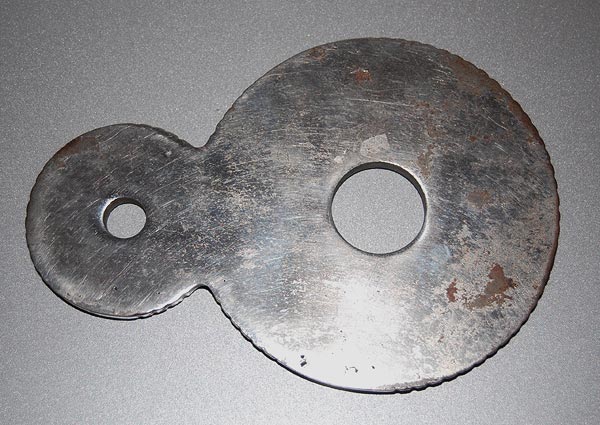

Webb adder - close up  Webb adder - back side
Click a photo to enlarge
    What makes this operation interesting is that unlike most other geared-wheel adders of its time the Webb uses stored-energy carry. The simpler adders use straightforward gearing to make the carry operation; each dial has a single tooth that engages the next gear up when it completes a full revolution. The problem with this is that it takes some force to drive the gear train, especially when adding 1 to a number like 9999, since the stylus has to rotate all the gears at once. The first inventor to solve this problem was Blaise Pascal in the 17th century; his Pascaline, one of the very first mechanical calculators, introduced a sequential carry mechanism where each gear passed the carry under its own power, so to speak, once the previous wheel triggered it to do so. The Webb has only one carry transfer position, but it uses a similar idea.
    In Webb's implementation of stored-energy carry the energy to move the higher wheel is accumulated gradually during the entire turn of the lower wheel, by slowly compressing a spring. At the moment of the carry – when the big dial goes from 99 to 0 - the spring is released and its force increments the small dial. This force still derives from the operator’s muscles, but it has been fed in gradually and is barely felt; the carry seems to happen “by itself”.

    At right you can see the a photo of the enterprising Mr. Webb himself, taken in 1877.

Exhibit provenance:
    I bought this item at an annual meeting of the Oughtred Society. The stylus I got with it (seen in the photo above) is of Aluminum, and thus certainly not original.

Charles Henry Webb

More info:
    The patents for this device, with drawings, are available here.
